HLM081T4LC8 Performer Air Conditioning compressor 6.8HP refrigeration Scroll refrigeration compressors
Performer scroll compressors are manufactured wih advanced process,assembly and process control technology.
In the design of the compressor product and the plant itself,High standards of reliability and process control are a priority.These rigorously guarantee the compressor product efficiency, reliability and low noise level.
Performance:
The Performer H-Series compressors are designed with flexible
vortex, and the performance is improved by the initial run-time.
Therefore, in order to achieve the desired performance, a 72-hour
run-in period is recommended.

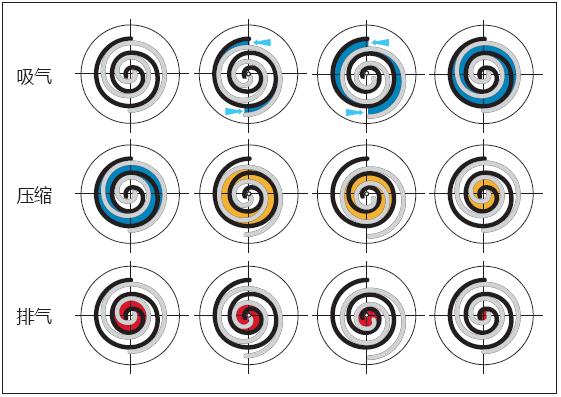

A complete scroll compression is shown in the figure.
The movable scroll is driven by the crankshaft to make a circular
movement around the fixed scroll,
So that a symmetrical compression chamber is formed between the two
scrolls.
Low-pressure gas is sucked into the crescent-shaped gas chamber
(suction chamber);
With the continuous motion of the movable scroll, the gas chamber
is sealed and moved to the center of the scroll, and the volume
decreases and the pressure gradually increases.
After three complete circular motions, the gas chamber reaches the central exhaust port and the pressure reaches maximum.
Scroll compression is a continuous process:
In the second circular motion, a portion gas is compressed and the
other is entering the scroll and a portion gas is being vented.

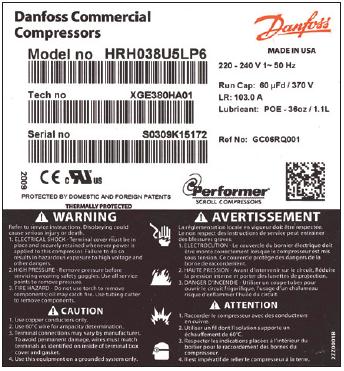

Name plate:
Series No. Explain:
Naming rules:

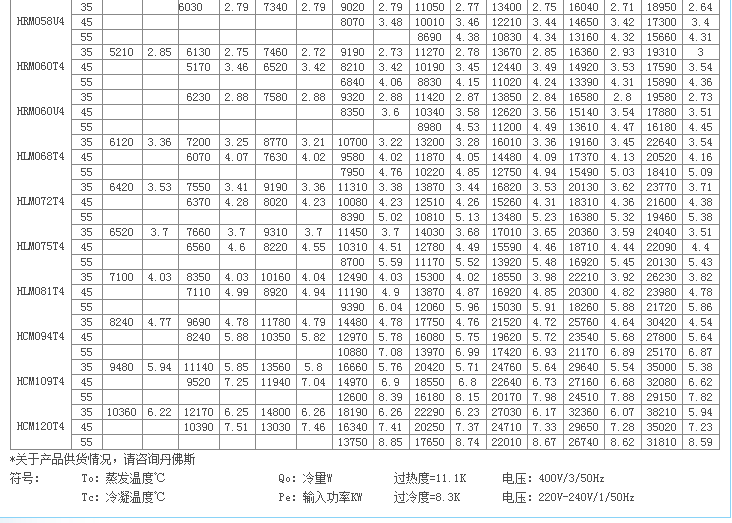

We have Performer Scroll Refrigeration HRM/HLM/HCM compressor from 2.5HP to 10HP as below:
| Model | TR | W | Btu/h | KW | MCC | COP W/W | EER Btu/h/w | cm/Rev | m/h | dm | Kg | |
| R22 | HRM032U4 | 2.7 | 7850 | 26790 | 2.55 | 9.5 | 3.08 | 10.5 | 43.6 | 7.6 | 1.06 | 31 |
| HRM034U4 | 2.8 | 8350 | 28490 | 2.66 | 9.5 | 3.14 | 10.7 | 46.2 | 8.03 | 1.06 | 31 | |
| HRM038U4 | 3.2 | 9240 | 31520 | 2.94 | 10 | 3.14 | 10.7 | 46.2 | 8.03 | 1.06 | 31 | |
| HRM040U4 | 3.3 | 9710 | 33120 | 2.98 | 10 | 3.26 | 11.1 | 54.4 | 9.47 | 1.06 | 31 | |
| HRM042U4 | 3.5 | 10190 | 34770 | 3.13 | 11 | 3.26 | 11.1 | 57.2 | 9.95 | 1.06 | 31 | |
| HRM045U4 | 3.8 | 10940 | 37310 | 3.45 | 12 | 3.17 | 10.8 | 61.5 | 10.69 | 1.33 | 31 | |
| HRM047U4 | 3.9 | 11500 | 39250 | 3.57 | 12 | 3.23 | 11.1 | 64.1 | 11.15 | 1.33 | 31 | |
| HRM048U4 | 4 | 11510 | 39270 | 3.57 | 12.5 | 3.23 | 11.1 | 64.4 | 11.21 | 1.57 | 37 | |
| HRM051T4 | 4.3 | 12390 | 42280 | 3.67 | 13 | 3.37 | 11.5 | 68.8 | 11.98 | 1.57 | 37 | |
| HRM051U4 | 4.3 | 12800 | 43690 | 3.83 | 13 | 3.34 | 11.4 | 68.8 | 11.98 | 1.57 | 37 | |
| HRM054U4 | 4.5 | 13390 | 45680 | 3.97 | 13.1 | 3.37 | 11.5 | 72.9 | 12.69 | 1.57 | 37 | |
| HRM058U4 | 4.8 | 14340 | 48930 | 4.25 | 15 | 3.37 | 11.5 | 78.2 | 13.6 | 1.57 | 37 | |
| HRM060T4 | 5 | 14570 | 49720 | 4.28 | 15 | 3.4 | 11.6 | 81 | 14.09 | 1.57 | 37 | |
| HRM060U4 | 5 | 14820 | 50580 | 4.4 | 15 | 3.37 | 11.5 | 81 | 14.09 | 1.57 | 37 | |
| HLM068T4 | 5.7 | 16880 | 57580 | 5 | 15 | 3.37 | 11.5 | 93.1 | 16.2 | 1.57 | 37 | |
| HLM072T4 | 6 | 17840 | 60870 | 5.29 | 15 | 3.37 | 11.5 | 98.7 | 17.2 | 1.57 | 37 | |
| HLM075T4 | 6.3 | 18430 | 62880 | 5.37 | 16 | 3.43 | 11.7 | 102.8 | 17.88 | 1.57 | 37 | |
| HLM081T4 | 6.8 | 19890 | 67880 | 5.8 | 17 | 3.43 | 11.7 | 110.9 | 19.3 | 1.57 | 37 | |
| HCM094T4 | 7.8 | 23060 | 78670 | 6.8 | 21 | 3.39 | 11.6 | 126 | 21.93 | 2.66 | 44 | |
| HCM109T4 | 9.1 | 26690 | 91070 | 7.77 | 24 | 3.43 | 11.7 | 148.8 | 25.89 | 2.66 | 44 | |
| HCM120T4 | 10 | 29130 | 99390 | 8.51 | 25 | 3.42 | 11.7 | 162.4 | ||||
