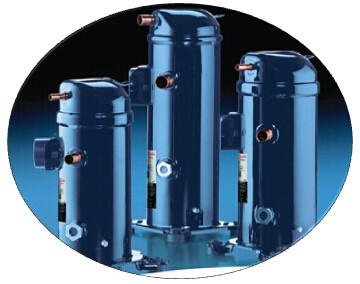

Commercial Scroll refrigeration compressors MLZ Series R404A
◆ MLZ / MLM refrigeration scroll compressors,Using a unique scroll
design,
And processing technology mobility,Providing an energy-efficient
solution for harsh refrigeration applications.
◆ The range of refrigerated scroll compressors contains 11 models of medium-temperature scroll compressors, these scroll compressors are designed for commercial refrigeration applications.
◆The engineers have already considered the particularity of refrigeration applications when they are design this models.and offer a wide range of refrigerant options (R404A - R134a - R507 - R22) for common power conditions,covering 3.4 to 21 KW (from 2 to 10 HP ) Of the cold range.
◆Thanks to its special design for refrigeration,The MLZ / MLM
scroll compressor has many advantages .
High-efficiency motors and optimized scroll profiles enable the
compressor to consume less energy under normal operating conditions
and provide greater cooling capacity for refrigeration
applications.
Product Features:
◆ Suitable refrigerants: R22, R134a, R404A, R507.
◆ three different motor voltage: 380-400V / 3PH / 50Hz, 220-240V /
1PH / 50Hz, 460V / 3PH / 60Hz
◆ Built-in motor protection: MLZ / MLM scroll compressor in the
motor winding with built-in circuit breaker protection.The
protector is an automatic reset design, and the protector includes
a bimetallic action switch.
◆ Compressor configuration: oil-sight glass and oil discharge connection: MLZ / MLM scroll compressor with oil mirror, the interface size is 1 "1 / 8-18 Enlish.Through oil sight, you can observe the oil level, oil status.In addition, the position interface can be fitted with a lubricant management device. The flare connection is 1/4 "in diameter and has a built-in needle valve.
◆ scroll compressor uses advanced processing, assembly and process
control technology.
In the design of compressor products and their manufacturing
processes, high standards of reliability and process control are
prioritized. These technologies ensure efficient, reliable and
low-noise compressor products.
Naming rules:

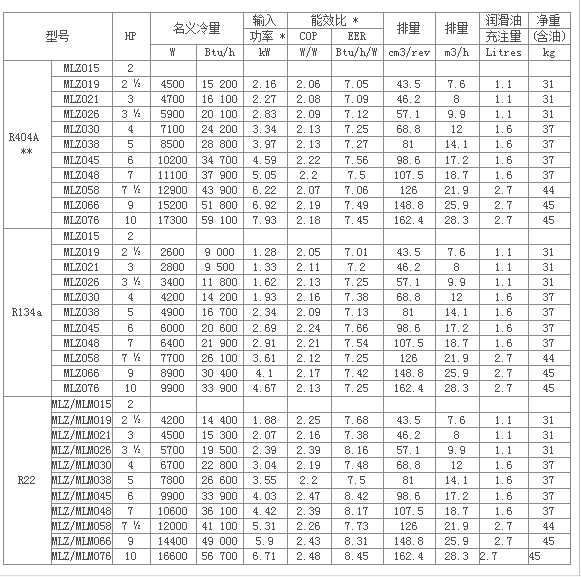

We have commercial refrigeration scroll MLZ compressor from 2HP to 10HP as below:
R404A
| Model | -25℃/45℃ | -10℃/45℃ | ||
| Refrigerant Capacity kW | Input Power kW | Refrigerant Capacity kW | Input Power kW | |
| MLZ015 | 1.34 | 1.87 | 2.93 | 1.75 |
| MLZ019 | 2.00 | 2.08 | 3.95 | 2.16 |
| MLZ021 | 2.13 | 2.22 | 4.18 | 2.27 |
| MLZ026 | 2.68 | 2.81 | 5.23 | 2.83 |
| MLZ030 | 3.24 | 3.31 | 6.28 | 3.34 |
| MLZ038 | 3.85 | 4.02 | 7.49 | 3.97 |
| MLZ045 | 4.64 | 4.92 | 9.01 | 4.81 |
| MLZ048 | 5.01 | 5.21 | 9.83 | 5.17 |
| MLZ058 | 5.53 | 6.33 | 11.38 | 6.21 |
| MLZ066 | 6.81 | 6.79 | 13.46 | 6.92 |
| MLZ076 | 8.27 | 7.83 | 15.35 | 7.93 |
| Model | HP | Swept Volume | Displacement | Sound Power | Net weight | Oil charge | ODF Connection | ||
| (cm3/rev) | (m3/h) | Without Jacket | With Jacket | (kg) | (L) | Suction | Discharge | ||
| MLZ015 | 2 | 31 | 1.1 | 3/4" | 1/2" | ||||
| MLZ019 | 2.5 | 43.5 | 7.6 | 65 | 57 | ||||
| MLZ021 | 3 | 46.2 | 8 | ||||||
| MLZ026 | 3.5 | 57.1 | 9.9 | 67 | 59 | ||||
| MLZ030 | 4 | 68.8 | 12 | 70 | 62 | 37 | 1.6 | 7/8" | |
| MLZ038 | 5 | 81 | 14.1 | 71 | 63 | ||||
| MLZ045 | 6 | 98.6 | 17.2 | ||||||
| MLZ048 | 7 | 107.5 | 18.7 | 72 | 64 | 3/4" | |||
| MLZ058 | 7.5 | 126 | 21.9 | 74 | 66 | 44 | 2.7 | 1-1/8" | 7/8" |
| MLZ066 | 9 | 148.8 | 25.9 | 45 | |||||
| MLZ076 | 10 | 162.4 | 28.3 | ||||||
Size and connection:
|
|
