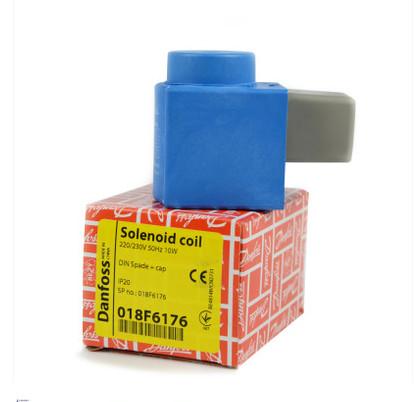

HVAC coil for Solenoid Valve refrigeration system controls 018F6176 10W 50HZ 220/230v

coils are specially designed to operate in the aggressive environment of high humidity and temperature fluctuations that you find in most refrigeration systems.

The Clip-on fastening system ensures a faultless installation and makes the coils easy to mount or dismount.

A Clip-on coil can be mounted without any tools at all, and it is simple to dismount the coil be means of a screwdriver.

The Clip-on coil is available for the entire range of solenoid valves for refrigeration, freezing and air conditioning purposes.
Coils for solenoid valves

Features

Encapsulated coils with long operating life, even under extreme conditions
Standard coils for a. C. Or d. C
Standard coils available with 3-core cable, terminal box or DIN plugs
Standard coils from 12 V to 420 V, 50, 60 or 50/60 Hz
Standard coils dimensioned for max. Opening differential pressure (MOPD) of up to 21 bar
Coils can be fitted or removed without the use of tools

Technical data

Ambient temperature
10 or 12 W a. C. Coil
For NC (normally closed) valve:
40 +80 C
10 W a. C. Coil
For NO (normally open) valve:
40 +55 C
20 W d. C. Coil
For NC and NO valve:
40 ++50 C
Permissible voltage variation
10 and 12 W a. C. Coils: +10 15% and as double frequency coils: 10%
A. C. Coils for 220-230 / 380-400 V: +6 15%
And as double frequency coils: +6 10%
20 W d. C. Coils: 10%.
Enclosure
IP 67 with cable or terminal box
IP 20 with DIN plugs and protective cap
IP 65 with DIN socket
IP 00 with DIN plugs.

Ambient temperature: -40 to + 80 ° C (NC valve), -40 to + 55 ° C (NO valve)
Allowable voltage fluctuation: +10 - -15%, dual-frequency coil: ± 10%
AC coils for 220-230 / 380-400 V: +6 - -15%, dual-frequency coils: +6 - -10%
Package: IP 67
Junction Box
All wires are connected to screw terminals in the terminal box with a Pg 13.5 threaded cable entry for a 6-14 mm cable. Maximum conductor cross-section: 2.5 mm2.
Maintained: 10 W / 21 VA
Startup: 44 VA

Solenoid valve coil:

018F6256 018F6257 018F6258 018F6259 018F6261 018F6251 018F6252 018F6253 018F6254 018F6265 018F6260 018F6263 018F6264 018F6280 018F6282 018F6701 018F6707 018F6707 018F6708 018F6709 018F6711 018F6701 018F6702 018F6702 018F6703 018F6704 018F6715 018F6710 018F6714 018F6713 018F6730 018F6732 018F6181 018F6182 018F6183 018F6183 018F6184 018F6186 018F6176 018F6177 018F6178 018F6179 018F6190 018F6185 018F6189 018F6188 018F6192 018F6193 018F6856 018F6857 018F6859 018F6860 018F6861 018F6851 018F6886 018F6887 018F6889 018F6890 018F6891 018F6881 018F6807 018F6808 018F6809 018F6811 018F6801 018F6802 018F6803 018F6815 018F6813 018F6814 018F7360 018F7363 018F6851 018F6861 018F6881

AC coil

042N8608 042N7608 042N8609 042N7609 042N8612 042N7612 042N8601 042N7601 042N8602 042N7602 042N8658 042N7658 042N8659 042N7659 042N8662 042N7662 042N8651 042N7651 042N8652 042N7652 042N8671 042N7671 042N8674 042N7674 042N8201 042N4201 042N8202 042N4202 042N8203 042N4203 042N8211 042N4211 042N8212 042N4212 042N8213 042N4213 042N8696 042N7696 042N8697 042N7697 042N8686 042N7686 042N8687 042N7687
