Bilateral air outlet air cooler high temprature DL series for coldroom
Naming rules:
DL3.9/20
D means air cooler
L means high temprature
3.9 means nominal capacity
20 means cooling area
Technical data:
| Bilateral air outlet air cooler Bilateral air cooler | |||||||||||||
| Model | Nominal capacity (KW) | Cooling Area (m2) | fan | Defrost electrical heater | |||||||||
| Air Volume cmh | Diameter of fans (mm) | Quantity Set | Power W | Voltage V | Coil W | Quantity Set | Drain water plate (W) | Quantity Set | Power W | Voltage V | |||
| DL3.9/20 | 3.9 | 20 | 3400 | 300 | 2 | 164 | 220 | 1600 | 2 | 1600 | 2 | 3200 | 220 |
| DL5.8/30 | 5.8 | 30 | 4600 | 350 | 250 | 2400 | 2400 | 4800 | |||||
| DL7.8/40 | 7.8 | 40 | |||||||||||
| DL10.7/55 | 10.7 | 55 | 6900 | 3 | 375 | 3300 | 3300 | 6600 | |||||
| DL15.5/80 | 15.5 | 80 | 9200 | 4 | 500 | 380 | 2400 | 2400 | 4800 | 380 | |||
| DO20.3/105 | 20.3 | 105 | 12000 | 400 | 740 | 4600 | 4600 | 9200 | |||||
| DL26.2/135 | 26.2 | 135 | 16000 | 450 | 920 | 5000 | 5000 | 10000 | |||||
| DL31.0/160 | 31 | 160 | 5200 | 5200 | 10400 | ||||||||
| DL35.9/185 | 35.9 | 185 | 6000 | 6000 | 12000 | ||||||||
| DL42.6/220 | 42.6 | 220 | 19200 | 1000 | 6400 | 6400 | 12800 | ||||||

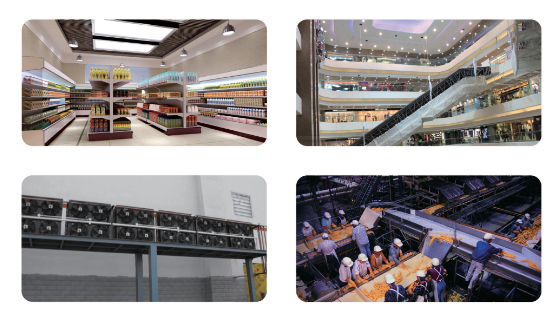

Range of application and Show:
A:Refrigeration industry,cold room project,
B:Agricultural,food,restaurant,chemical industry.

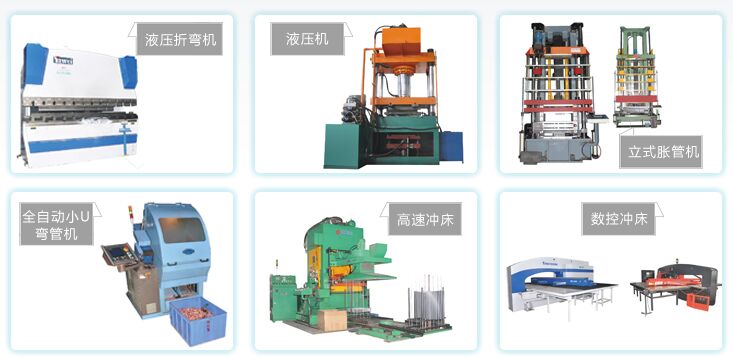

Factory Production equipment show:
Brand and capacity
Currently have a 40,000 square meters large production base,
7 modern production lines,
A fully equipped testing center,
And advanced automatic 3D CNC bending machine and elbow machines, semi-3D CNC bending machine, vertical horizontal pipe up machines, cleaning machines.
A large warehouse.to keep raw materials.
Brand and quality
Strictly in accordance with ISO9001 international quality management system,
And according to our real situation,Development own process from product design to production and testing processes.
Every step has formed factory own characteristics Standardized management system,
In quality management system construction,Achieved line with international practice.
Brand and R & D
Brand is the product practical function, psychological function, social function, additional features comprehensive impact on consumers outcome.
In order to Distinguished with other peers, Enterprise must achieve differentiation.
In additional to rely on series of Operating system and performance indicators judgment practical function,
But also the pursuit of Differentiation Brand image and additional features.
R & D department’s complete management system And Advanced research and development equipment is stream power.Help Company achieve Brand Differentiation.
Meanwhile, development team getting mature,Product self-innovation capability will enter a fast track.
Welcome contact us if you have any question,we will response you soon.
