| Ask Lasest Price | |
| Brand Name : | |
| Model Number : | CPCE LB LG Series |
| Certification : | CE/ UL |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C, Western Union, MoneyGram,Paypal |
| Supply Ability : | 1000pcs per month |
| Delivery Time : | 3-7 working days |

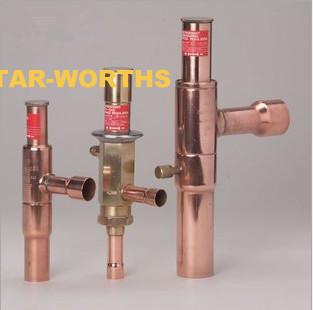

CPCE Capacity Regulators adapt compressor capacity to actual evaporator load.
They are designed for installation in a bypass line between the low and high pressure sides of the refrigeration system, for hot gas injection between evaporator and thermostatic expansion valve.
Injection should be arranged to occur through an LG liquid-gas mixer.
Product Features
Refrigerants: HCFC and Non-flammable HFC refrigerants.
Regulating range 0 - 6.0 bar (0 - 87 psig),
factory setting 0.4 bar (5.8 psig),
max. working pressure 28 bar (406 psig).
Max. test pressure 31 bar (450 psig).
Access port: ¼ in. Schrader valve for pressure testing.
Type Connection Rated capacity (KW) Code no. Flare Solder inch mm
inch mm R22 R134a R404A/R507 R407C CPCE12 1/2 12
17.4 7.9 16.4 19.0 034N0081 CPCE12
1/2 12 17.4 7.9 16.4 19.0 034N0082 CPCE15
5/8 16 25.6 11.6 24.2 27.9 034N0083 CPCE22
7/8 22 34.0 15.2 32.0 37.1 034N0084
The CPCE regulator is used to adjust the compressor load to match
the actual load of the evaporator.
The CPCE-type energy regulator is installed on the high-pressure
side and low-pressure side of the refrigeration system. It is
specifically designed for the hot steam injection between the
evaporator and the thermal expansion valve, and the injection is
typically carried out by a LG liquid-gas mixer
Product Features:
◆ High control precision
◆directly connected with the system suction pipe, adjust the amount
of hot gas injection, spray the evaporator pressure drop has
nothing to do
◆ regulator to improve the vapor flow within the evaporator to
ensure a good compressor oil return
◆ To prevent evaporation temperature is too low, to avoid
evaporator icing
◆ can be used for CFC, HCFC and HFC refrigerant
◆ LG-type liquid-gas mixer phase evaporator to provide uniform
liquid and hot gas refrigerant mixture
◆ LG type liquid gas mixer can be used as a hot air defrost or
reverse circulation system
◆ According to the characteristics of the expansion valve into the
hot gas to mix, in order to avoid excessive suction superheat
| Models CPCE & Lg | ||||||
| Part Number | Model Number | Connection | Rated Capacity (kw) | |||
| R22 | R134a | R404A | R407C | |||
| Capacity Regulator | ||||||
| 034N0081 | CPCE | 1/2” FL | 17.4 | 7.9 | 16.4 | 19 |
| 034N0082 | 1/2” ODS | |||||
| 034N0083 | 5/8” ODS | 25.6 | 11.6 | 24.2 | 27.9 | |
| 034N0084 | 7/8” ODS | 34 | 15.2 | 32 | 37.1 | |
| Part Number | Model Number | Connections | ||
| Expansion Valve | Hot Gas | Liq. Distributor | ||
| Liquid - Gas Mixer | ||||
| 069G4001 | LB 12-16 | 5/8” ODM | 1/2” ODF | 5/8” ODM |
| 069G4002 | LG 16-22 | 7/8” ODM | 1/2” ODF | 7/8” ODM |
| 069G4003 | LG 16-28 | 1-1/8” ODM | 5/8” ODM | 1-1/8” ODM |
| 069G4004 | LG 22-35 | 1-3/8” ODM | 7/8” ODM | 1-3/8” ODM |
| Part Number | To suit |
| Evaporator Pressure Regulator - Servo operated | |
| 034N1052 | VALVE EPR 1-3/8" |
| 034N1053 | VALVE EPR 1-5/8" |
| 034N1061 | VALVE EPR 1-3/8 C/W SOL VALVE |
| 034N1062 | VALVE EPR 1-5/8 C/W SOL VALVE |
|
|
