Star-Worths Refrigeration Co.,Ltd One of the leader manufacture in Refrigeration equipments,air cooler,condenser,evaporator,condensing unit and distributor of Refrigeration compressors HVAC control
9 Years
| Ask Lasest Price | |
| Brand Name : | |
| Model Number : | KVL Series |
| Certification : | CE/ UL |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C, Western Union, MoneyGram,Paypal |
| Supply Ability : | 1000pcs per month |
| Delivery Time : | 3-7 working days |
Product Features:
◆ to achieve precise and variable pressure regulation
◆ Application cooling capacity and wide operating range
◆ pulsation damping design
◆ Stainless steel to bellows
◆ "closed" brazing structure
◆ compact angle form of design, easy to install in any location
◆ provide a wide range of size of the bell mouth and outer diameter
welding interface
◆ can be used for CFC, HCFC and HFC refrigerant
More Models as below:
| Type | Rated capacity in (kw) | solder connection | Code no. | |||
| R22 | R134a | R404A/507 | R407C | (inch) | ||
| KVL12 | 7.1 | 5.3 | 6.3 | 6.5 | 1/2 | 034L0043 |
| KVL15 | 7.1 | 5.3 | 6.3 | 6.5 | 5/8 | 034L0049 |
| KVL22 | 7.1 | 5.3 | 6.3 | 6.5 | 7/8 | 034L0045 |
| KVL28 | 17.8 | 13.2 | 15.9 | 16.4 | 1 1/8 | 034L0046 |
| KVL35 | 17.8 | 13.2 | 15.9 | 16.4 | 1 3/8 | 034L0052 |

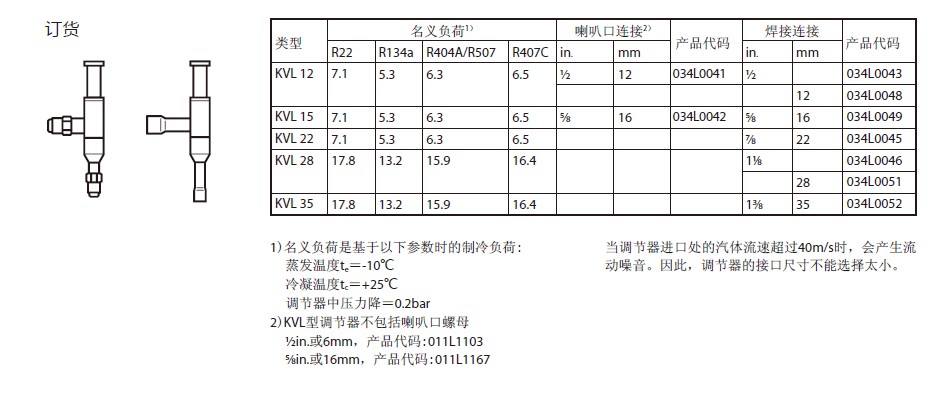

| Crankcase Pressure Regulator Model KVL | |||||||
| Part No. | Model No. | Regulating | Connections | Rated Capacity (kW) | |||
| Range kPa (psig) | R22 | R134a | R404A | R407C | |||
| 034L0041 | KVL12 | 20 to 600 (3 to 87) | 1/2" Fl 1 | 7.1 | 5.3 | 6.3 | 6.5 |
| 034L0042 | KVL15 | 5/8" Fl 1 | |||||
| 034L0043 | KVL12 | 1/2" ODS | |||||
| 034L0049 | KVL15 | 5/8" ODS | |||||
| 034L0045 | KVL22 | 7/8" ODS | 17.8 | 13.2 | 15.9 | 16.4 | |
| 034L0046 | KVL28 | 1-1/8" ODS | |||||
| 034L0052 | KVL35 | 1-3/8" ODS | |||||
|
|
